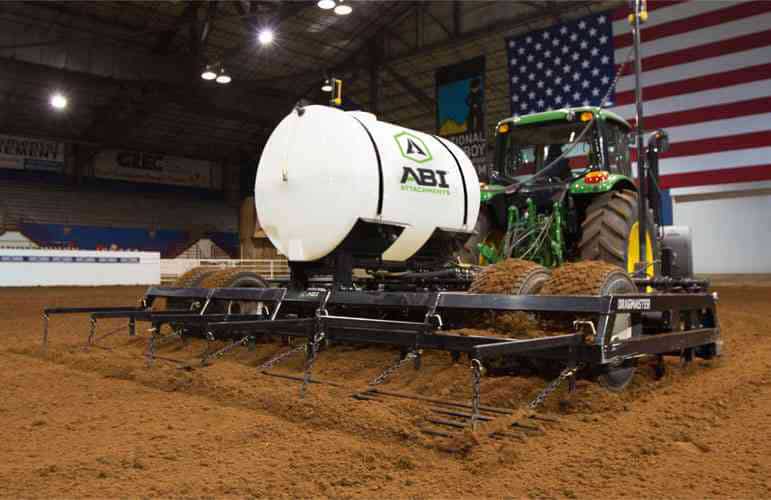

The World's Premier Arena Drag

Used & recommended by leading organizations like the AQHA, NRHA, Lazy E Arena, and many of the industry's top horsemen, the ABI DragMaster Elite is the world's premier arena drag! With all the features of the ABI DragMaster Elite, you can easily create proper depth, consistent moisture content, and footing consistency to create a safe, healthy, and beautiful arena footing for your horses.
Water Trailer

Ground-Engaging Components

5

Possible Configurations

150

H.P. Rating

45 - 150

Limited Warranty

36-month

Revolutionary Design & Industry Exclusive Features include Motor Grader Style Ground Plane: The pull behind design offers a long distance between the tractor wheels and the ABI DragMaster Elite wheels. The leveling blade sits in between these wheels creating the perfect ground plane that is critical for level consistent footing. The Independently Controlled Hydraulic Leveling Blade is independent from the frame and other ground engaging components. This enables precision leveling without changing the conditioning depth.

Ground Engaging Components

Independent Ground Engaging Components

Revolutionary Design & Industry Exclusive Features include Motor Grader Style Ground Plane: The pull behind design offers a long distance between the tractor wheels and the ABI DragMaster Elite wheels. The leveling blade sits in between these wheels creating the perfect ground plane that is critical for level consistent footing. The Independently Controlled Hydraulic Leveling Blade is independent from the frame and other ground engaging components. This enables precision leveling without changing the conditioning depth.

The ABI DragMaster Elite is shown fully equipped. This is the configuration most of our customers will need. However, some customers may not need all the included features so they may be removed from the ABI DragMaster Elite. Some indoor arenas that have pure sand may not need the hydraulic scarifier system. Indoor arenas that have an overhead watering system may not need the PTO water system. Although these features may be removed to lower the purchase price ABI recommends the fully equipped configuration for the vast majority of our customers.

Base Model
  • Hydraulic Grading/Leveling Blade
  • Adjustable Grooming Rods
  • Hydraulic Transport & Gauge Wheels
  • Profile Blade
  • Finish Drag Bars
Configuration 1
Base Model with Scarifiers
  • Hydraulic Grading/Leveling Blade
  • Adjustable Grooming Rods
  • Hydraulic Scarifier System
  • Hydraulic Transport & Gauge Wheels
  • Profile Blade
  • Finish Drag Bars
Configuration 2
Fully Equipped
  • Hydraulic Grading/Leveling Blade
  • Adjustable Grooming Rods
  • Hydraulic Scarifier System
  • Hydraulic Transport & Gauge Wheels
  • Profile Blade
  • Finish Drag Bars
  • 300-500 Gallon PTO Water System
Configuration 3
Level Ground Plane

Pull-Behind Ground Plane Design

The innovation behind the ABI DragMaster Elite begins with its pull-behind design. By creating a ground plane, this design offers distance between the wheels of the tractor and DragMaster Elite. The Hydraulic-leveling blade sits between these wheels for precision grading creating perfectly level and consistent footing, which allows the ABI DragMaster Elite to outperform all 3-point arena drags.

Wheel

Hydraulic Transport & Gauge Wheels

Supporting the ABI DragMaster Elite and controlling its working depth are the hydraulic transport & gauge wheels. These wheels keep the arena footing consistent with every pass. Consistency is key to the performance and safety of the horse. The main hydraulic cylinder controls the gauge wheels, which allows you to lock in your settings for repeatable and precise results. Whether at home or an event, every operator can ensure a consistent riding experience for each horse and rider.

Water System

Massive PTO Watering System

The available massive PTO watering system regulates the amount of water in your footing, which is critical to its strength, cushion, and rebound, not to mention dust control. The DragMaster Elite has the largest watering system available on any arena drag in the world ranging from 1136-1893 Liters. The variable-output PTO-driven pump allows precision control from the tractor seat, making a perfect water application easy!

The DragMaster Elite’s independently-adjustable ground-engaging components can be precision-adjusted from the frame for ultimate control! After the hydraulic leveling and grading blade creates a level traveling surface, the adjustable grooming rods, scarifiers, profile blade, and drag bars systematically pulverize, re-grade and loosen the footing, reinforce the base, and create the ideally-cushioned footing profile!

Hydraulic Grading

Hydraulic Grading & Leveling Blade

Maintain Consistent Footing Depth

The first adjustable component is the hydraulic grading & leveling blade. Used to maintain consistent footing depth and equalize high and low areas across the arena. Level your arena automatically with the optional laser system!

Grooming Rods

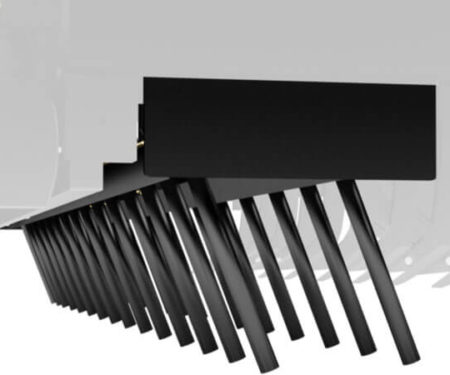

Adjustable Grooming Rods

Loosen Material & Incorporate Water

The 2 rows of adjustable grooming rods are the first components to loosen material, and are designed to incorporate the DragMaster Elite’s water into the footing.

Hydraulic Scarifier

Hydraulic Scarifier System

Break Up The Hardest Compacted Material

The DragMaster Elite’s available hydraulic scarifier bar breaks up the hardest compacted material for when an arena sees heavy use or hasn’t been properly loosened for a time. The bar is independently adjustable from the rest of the components, enabling them to be engaged or disengaged easily. The replaceable tips are made from a hardened, wear-resistant steel.

Profile Blade

Profile Blades

Slice Through Material From The Bottom Up

The patented Profile Blades of the DragMaster Elite can loosen 100% of the arena footing with every pass! No longer does an operator have to make multiple passes to loosen all the footing. The Profile Blades slice through material from the bottom up, not the top down. This eliminates all ridges in the footing, allowing the footfall of the horse to be flat and perfect every time!

Finish Drag Bar

Finish Drag Bars

Leave A Signature Finish

The Drag bars of the DragMaster Elite are designed to leave a signature finish while filling in any remaining small holes. These bars can be adjusted to apply the perfect amount of pressure to the footing depending on the footing consistency and moisture level.

PTO Watering System

300-500 Gallon PTO Water System

Regulate The Amount Of Water In Your Footing

The available PTO watering system regulates the amount of water in your footing, which is critical to its strength, cushion, and rebound, not to mention dust control! The DragMaster Elite has the largest watering system available on any arena drag in the world. The variable-output PTO-driven pump allows precision control from the tractor seat, making a perfect water application easy! 1136 or 1893 Liter size. For facilities with another arena moisture solution (water trailer, sprinklers, etc.), the DragMaster Elite can now be fitted without a water system from the factory!

Rail Blade

Rail Blade

Every arena experiences footing displacement, especially ones that have heavy use. The rail blade rides along the edge of your arena and guides footing back into the path of the hydraulic leveling blade for even distribution across the arena!

Spray Hose

Spray Hose

The DragMaster Elite’s spray hose helps provide the extra polish and “finish factor” to arenas. Use it to clean panels and fencing, wash down your tractor and drag, or apply water to hard-to-reach areas like corners and entry areas. Long enough to be safely operated from the tractor seat!

PDFs

Videos

Can’t find the resource you’re looking for? Let us help! Our support team can be reached at 877-788-7253

Used & recommended by leading organizations like the AQHA, NRHA, Lazy E Arena, and many of the industry's top horsemen, the ABI DragMaster Elite is the world's premier arena drag! With all the features of the ABI DragMaster Elite, you can easily create proper depth, consistent moisture content, and footing consistency to create a safe, healthy, and beautiful arena footing for your horses.
Used & recommended by leading organizations like the AQHA, NRHA, Lazy E Arena, and many of the industry's top horsemen, the ABI DragMaster Elite is the world's premier arena drag! With all the features of the ABI DragMaster Elite, you can easily create proper depth, consistent moisture content, and footing consistency to create a safe, healthy, and beautiful arena footing for your horses.
Used & recommended by leading organizations like the AQHA, NRHA, Lazy E Arena, and many of the industry's top horsemen, the ABI DragMaster Elite is the world's premier arena drag! With all the features of the ABI DragMaster Elite, you can easily create proper depth, consistent moisture content, and footing consistency to create a safe, healthy, and beautiful arena footing for your horses.
