Patented Tractor Driveway Grader & Landscape Rake

The TR3 E Property Edition is a 3-point tractor implement that empowers you to Command Your Land®! It combines the function of a box blade, landscape rake, chain harrow, pulverizer, and landplane all into one patented design. This innovation not only eliminates the need to buy all of these implements separately, but it also gets more work done with better results, faster than you thought possible. Add in the optional food plot discs and this multi-purpose platform also becomes your go-to food plot harrow.
ABI TR3e Property Edition Product Render
TR3 “E” Property Edition Grading

Grade Your Gravel Driveway

The TR3 E Property Edition is a complete gravel driveway resurfacing system! It recycles existing gravel, creates a level and smooth driving surface, and restores rough pothole and washboard filled driveways back to new!

TR3 “E” Property Edition Landscaping

Landscape Your Property

Quickly install, repair, or expand your lawn and landscape with the TR3 E Property Edition. Complete light land clearing, landscape contouring, and proper soil preparation for grass seed or sod.

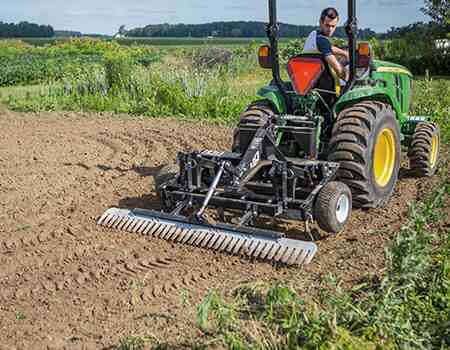

TR3 “E” Property Edition Garden Plot

Prepare Your Garden & Food Plots

The TR3 E Property Edition can cultivate and level your garden or food plot. This is accomplished after you have sprayed a herbicide a few days ahead of time and then mowed that vegetation very low.

TR3 “E” - Pasture Harrow

Repair Your Trails, Paths & Pastures

If you have gravel, soil, or sand that needs to be loosened, leveled, and raked. The TR3 E Property Edition will get the job done fast.

TR3 “E” Property Edition Line Drawing

U.S. Patents

2

Ground-Engaging Components

3

H.P. Rating

23 - 75

Limited Warranty

60-month

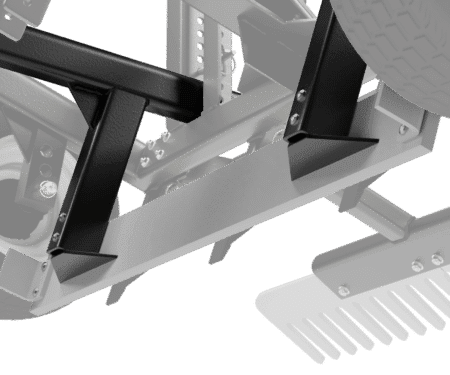

Self-Leveling Box Blade

Self-Leveling Box Blade

A simple solution for grading driveways and leveling soil.

The self-leveling action eliminates the need for a skilled operator, and makes it easy to create a consistently level surface. The integrated box blade is adjustable and can be used in the self-leveling position or locked down in a fixed manual position to move larger amounts of material. The self-leveling position is ideal for general gravel or soil leveling work to grab material from high areas and drop that material into lower areas with no special skill required. The fixed manual position is ideal for rougher grading, spreading of material, and filling in washed out areas. This versatility enables the TR3 E Series to not only routinely maintain a driveway efficiently, but also renovate a driveway riddled with potholes, washboarding, and washouts.

Scarifier Teeth

Loosening Teeth

Get the bite for tough dirt and gravel work

The loosening teeth give the TR3 E Property Edition the bite for tough dirt and gravel work. These cast and hardened teeth are adjustable to loosen compacted material from 0 to almost 5 inches deep to get to the bottom of potholes, and properly prepare soil for seeding. To keep maintenance costs low, the tips of the loosening teeth are easily replaced to ensure peak performance no matter the ground condition.

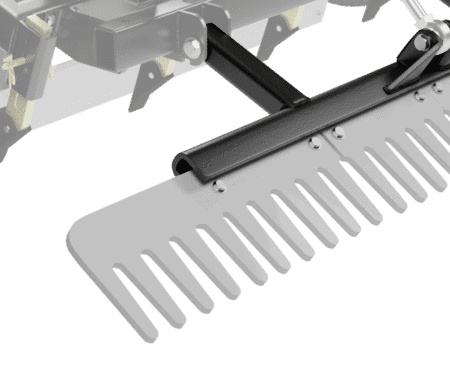

Adjustable Pulverizing Rake

Adjustable Pulverizing Rake

A simple solution for grading driveways and leveling soil.

The adjustable pulverizing and finish rake is made of half inch thick hardened steel. This laser-cut rake pulverizes clumps of gravel and clay, prepares soil, resets surfaces, and even breaks-up manure lying on a pasture. When operating in reverse, the rake can push loose material into low areas, rip out vegetation, and push debris into piles. The rake is replaceable in one-foot sections to reduce maintenance costs.

Depth & Crown Control Wheel

Depth & Crown Control Wheel

Find the perfect position for your property

The TR3 E Property Edition is stabilized by two substantial depth and crown control wheels. A properly prepared driveway needs to have a consistent loosened gravel depth and be crowned so it can easily shed rain water. The adjustable wheels control the depth of loosening and maintain level and consistent grading. The wheels can be offset from side-to-side to establish a crown on your driveway.

Quick-Hitchs

Easy To Use & Connect

The TR3 E-Series was specifically designed for ease of use, and with quick hitch compatibility, it’s simple and safe to connect and disconnect from your tractor.

TR3E - TR3 Disk

Food Plot Disc

Ever wish Saturdays had more daylight hours than the rest of the week? We’d like to help you make the most of the hours you have. With the Food Plot Disc option, you don’t have to cram the barn full of 3-point attachments. Your multi-purpose TR3 E-Series Property Edition can become your go-to disc harrow for your food plot or garden.

Tow Vehicle Requirements

TR3 E - Property 6' 7'
Vehicle Type Tractor with 3-Point Tractor with 3-Point
Min. Horsepower 23 h.p. 27 h.p.
Max. Horsepower 65 h.p. 75 h.p.
4 Wheel Drive Required Required
3-Point Category Limited CAT 1, CAT 1 CAT 1
Min. 3-Point Lift 570 lbs. 650 lbs.
Front Weight Needed Yes, Min 15% of Total Machine Weight Required Yes, Min 15% of Total Machine Weight Required

Unit Weights & Dimensions

TR3 E - Property 6' 7'
Base Unit Weight 570 lbs. 650 lbs.
Full Unit Weight 665 lbs. 760 lbs.
Base Shipping Weight 625 lbs. 705 lbs.
Full Shipping Weight 720 lbs. 815 lbs.
Unit Dimensions 71"W x 51"D x 30"H 83"W x 51"D x 30"H
Shipping Dimensions 72"W x 48"D x 36"H 84"W x 48"D x 36"H

Frame Construction

TR3 E - Property 6' 7'
3-Point Hitch Limited CAT 1, CAT 1 CAT 1
Quick Hitch Compatible Yes Yes
Tire Size 16.5" Diameter x 6.5" Width x 8" Rim 16.5" Diameter x 6.5" Width x 8" Rim
Tire Type Turf Tire - Air Filled Turf Tire - Air Filled

Finish Rake

TR3 E - Property 6' 7'
Type Adjustable Relationship To Frame Adjustable Relationship To Frame
Raking Width 71" (5.92') 83" (6.92')
Rake Material 1/2" Steel - Laser Cut (Replaceable in sections) 1/2" Steel - Laser Cut (Replaceable in sections)
Flared Ends Yes Yes
Push Material Backward Completely Loose Material Only Completely Loose Material Only

Grading Blade

TR3 E - Property 6' 7'
Type Floating, Fixed, or Float Within Range Floating, Fixed, or Float Within Range
Grading Width 45.5" (3.79') 57.5" (4.79')
Cutting Edge Solid, Replaceable Solid, Replaceable

Scarifiers

TR3 E - Property 6' 7'
Type Rigid Shank - With Replaceable Tip (Bolt-On) Rigid Shank - With Replaceable Tip (Bolt-On)
Scarifying Width 44.4" (3.7') 56.5" (4.71')
Scarifying Depth 0" - 4 3/4" 0" - 4 3/4"
# of Scarifiers 4 6
Scarifier Shank Length 7" 7"

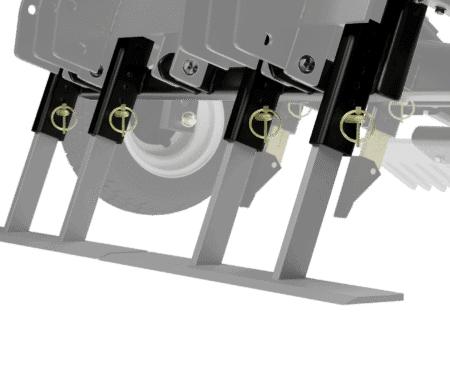

Profile Blades

TR3 E - Property 6' 7'
Available Option Option
Profile Blade Width 58" (4.83') 70" (5.83')
Profile Blade Depth 0" - 6" 0" - 6"
Mounting Location Front Front
Unit Weight 93 lbs. 107 lbs.

Warranty

TR3 E - Property 6' 7'
Farm & Ranch Use 60-month 60-month
Commercial Use 12-month 12-month

Attributes

TR3 "E" Property Edition
Tow Vehicle Sub-Compact Tractor, Compact Tractor, Utility Tractor
Product Type Driveway Graders, Landscape Rakes, Grading Blades
Connection Ltd. CAT I 3-Point, CAT I 3-Point
Size
Other Attributes

The TR3 E Property Edition is a 3-point tractor implement that empowers you to Command Your Land®! It combines the function of a box blade, landscape rake, chain harrow, pulverizer, and landplane all into one patented design. This innovation not only eliminates the need to buy all of these implements separately, but it also gets more work done with better results, faster than you thought possible. Add in the optional food plot discs and this multi-purpose platform also becomes your go-to food plot harrow.
The TR3 E Property Edition is a 3-point tractor implement that empowers you to Command Your Land®! It combines the function of a box blade, landscape rake, chain harrow, pulverizer, and landplane all into one patented design. This innovation not only eliminates the need to buy all of these implements separately, but it also gets more work done with better results, faster than you thought possible. Add in the optional food plot discs and this multi-purpose platform also becomes your go-to food plot harrow.
