SR1 Rake

The SR1 combines the best features of a skid steer attached Landscape Rake, Pulverizer, & Scarifier all into one innovative design. This eliminates the need to switch out attachments and delivers vastly superior results, significantly faster than ever before. Backbreaking manual work along landscape and concrete edges is now a thing of the past. The SR1 is designed to work small areas and along edges and eliminate the back-breaking hand work. Command Your Land with the SR1 from ABI Attachments!

Soil Decompaction

At ABI Attachments we know that there is nothing more important to preparing a proper seedbed than getting rid of the compaction of the soil. A de-compacted soil allows water and air to reach the roots of the seed, giving those roots the ability to anchor deep creating a stable and healthy turf.

SR1 Decompacted Soil

Scott Holmes and Kevin Keigley with ABI Attachments discuss the differences between each Skid Steer Rake and which one would be right for you.

Trent Gillam with Henderson Turf Farm talks with Scott Holmes with ABI Attachments about the benefits of the TR3 Command Series and the impact it has on seedbed germination.

SR1 Grading Rake Line Drawing

Patent Pending

-

Ground-Engaging Components

2

H.P. Rating

30 - 75

Limited Warranty

36-m0nth

The SR1 combines the best features of a skid steer attached Landscape Rake, Pulverizer, & Scarifier all into one innovative design. This eliminates the need to switch out attachments and delivers vastly superior results, significantly faster than ever before. Backbreaking manual work along landscape and concrete edges is now a thing of the past.

SR1 Grading Rake I Beam

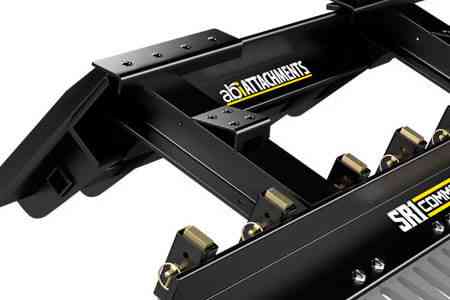

I-Beam Design

Fully welded for the utmost strength and longevity. Our Command Series tools are designed to work under tough conditions all day, every day.

SR1 Grading Rake 2 in 1

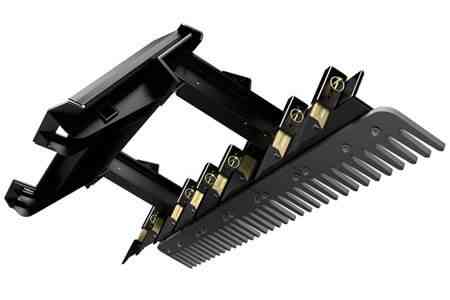

2-In-One Design

Designed to operate at an angle, the SR1 is an attachment with scarifiers and a rake that work together to create the ideal seedbed, especially along edges.

SR1 Grading Rake - Scarifiers

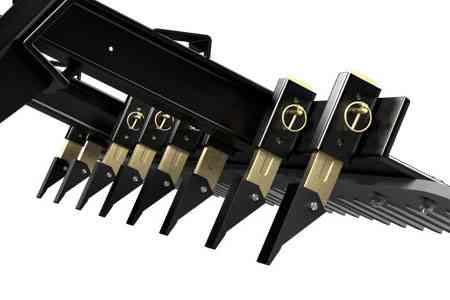

Adjustable Scarifiers

Loosens the ground from 0-12.7cm deep with adjustable depth control. Durable cast teeth penetrate the hardest of conditions and bolt-on tips keep maintenance costs low.

SR1 Grading Rake - Overview

HD Finish Rake

The 1.9cm-thick hardened-steel rake gives the SR1 finesse and strength. Push forward to clear vegetation & debris and pull backward to smash dirt clods and leave an ideal seed- or sod-ready finish. Replaceable in 0.3m sections.

Proudly manufacturered in the USA

Made In America

You want the best quality materials, you want the highest quality workmanship, you want your attachments made in the United States of America–and so do we! That’s why, since 1997, we’ve been manufacturing and selling equipment built to exceed your expectations, just like we should. This attention to detail creates products that are durable, reliable, and ready to do your toughest work–day after day.

Limited Warranty For Farm, Ranch, and Commercial Tools

60-Month Warranty

We build equipment with commercial-grade construction and superior craftsmanship, so you can rest assured it will last a very long time. And to back that up, we offer a 60-month limited warranty on this product. See warranty documentation for details.

Vehicle Type Skid Steer
Min. Horse Power 30
Unit Weight 208.6 kg
Raking Width 1.98m
Grading Width -
Scarifying Width 1.68m
# of Scarifiers 8
Hydraulic Scarifiers -
Scarifier Spacing 22.9-25.4cm
Scarifying Depth 0-12.7cm
Scarifying Tip Yes - Replaceable (Bolt-On)
Hydraulic Ports Needed -
Construction I-Beam & Angle Iron
Rake Material 1.9cm AR Steel - Laser Cut - (Replaceable in sections)
Wheels -
3-Point Tractor Mount No
Skid Steer Mount Universal
Unit Dimensions 198cm W x 98cm D x 48cm H
Warranty

36-m0nth Warranty

We build equipment with commercial-grade construction and superior craftsmanship, so you can rest assured it will continue making you money for a long time. And to back that up, we offer a 36-m0nth limited commercial warranty on this product. That's right, this product is designed for daily use, is built tough enough for commercial applications, and is backed by the longest standard commercial warranty we are aware of in the industry! Rental usage 12-months. See warranty documentation for details.
