TR3 “E” Equine Edition

5 Ground-Engaging Components

The TR3 E series has 5 points of contact with the ground! These contact points all do something different and make the TR3 E Series the most versatile and effective arena drag in the world! In order to properly prepare the entire profile of an arena, your arena drag must have more than one or two types of ground engaging components. Simply grooming out the hoof prints won’t keep your horses sound, performing to their maximum abilities or give you both the best chance for a long partnership.

Adjustable Components

The TR3 E Series has 5 footing engaging components and ALL COMPONENTS are adjustable. These adjustable components give you the control you need to properly prepare the entire profile of your footing! At ABI Equine we know that not all arena footing is the same! Variables such as materials used, moisture content, equine disciplines and hours of use per day all contribute to how to properly prepare an arena.

Positive Depth Control

Keeping your arena footing at a consistent depth is critical to the soundness and performance of your horses. When an arena footing profile is not properly prepared most arenas will get deep and shallow spots, which cause a horse to hesitate when traveling through the arena. Horses are reactionary and when unsure of their footfall, will often become tense and not respond to the riders’ cues.

The TR3 E Series frame is supported with our patented stabilizing tires, which eliminates the potential gouging of the footing engaging components and keeps your arena footing at a consistent depth.

Compact Design

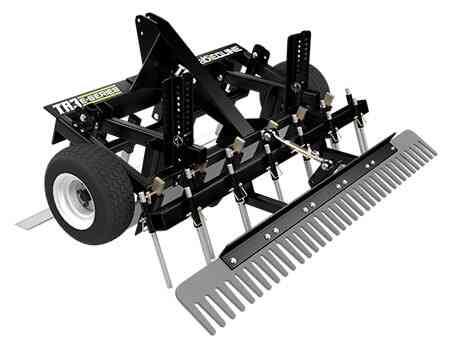

The TR3 E Series rides close behind the tractor. By keeping the weight of the TR3 E Series close to the three-point hook up, it gives smaller tractors more ability to pick it up and makes it easier to use. In addition, this compact design eliminates the “sway” of traditional and longer arena drags. These longer drags are notorious for knocking out fencing, jumps and hitting walls when used by inexperienced operators.

Easy To Use & Connect

The TR3 E-Series was specifically designed for ease of use, requiring no specialized skill to operate. It also has adjustments to accommodate any natural footing types and conditions. The TR3 E-Series is Quick Hitch compatible for simple and safe tractor connecting and disconnecting. Quick Hitch sold separately.

Sub Compact and Compact Tractor

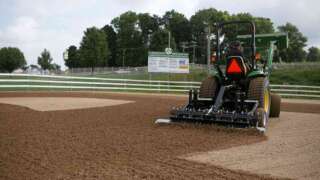

No other arena drag on the market offers more features, functions and results behind a sub compact or compact tractor. The TR3 E Series was purposefully built to provide 23+ horsepower tractors an arena drag that not only grooms an arena but properly prepares and renovates one as well!

Stabilizing Wheels

Find the perfect position for general grooming, preparing or renovating

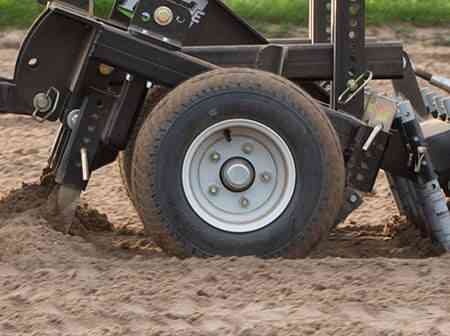

The TR3 E Series frame is stabilized by our U.S. patented stabilizing wheels. Located in the center of the frame, these wheels provide positive depth control to all of the TR3 E Series components. With 3 height adjustments, its easy to find the perfect position for general grooming, preparing or renovating.

All 3-point tractor implements move in the opposite direction of the front tires of the tractor. If the front tires of the tractor go up, the 3-point goes down. This causes most 3-point implements to dig holes and cause waves in horse arenas. This problem is solved with our floatation stabilizing wheels. These wheels prevent the TR3 E Series from undulating with the tractors front tires, keeping the loosening components from going any deeper than they are set and preventing the leveling blade from digging holes. The wheels control the depth of the loosening action, create consistent level travel to eliminate wash boarding and eliminates gouging and stalling of the tractor while pushing backward by supporting the frame. Additionally, these wheels support side-to-side “dipping” while cornering. These wheels are the secret to properly preparing your arena footing.

Profile Blades

Loosen footing without creating ridges

The profile blades are a major differentiator between the TR3 E Series and its competitors. Because of this patented concept, the desire to loosen footing without creating ridges can finally be realized. Similar to a sod cutting blade the profile blades cut parallel to the arena grade. So, instead of ripping through footing with perpendicular teeth these profile blades slice through the footing in quarter inch increments and loosen the footing as deep as seven inches. Now with every single pass of the tractor the TR3 E Series will be loosing 100% of the footing! This saves an enormous amount of time on the tractor because the driver no longer has to make two or three passes over the same footing with different patterns! The profile blade cleans the base of compaction and lifts the footing material to add cushion.

Floating Drag Bar

Move footing from one part of the arena to another

Even though many competitors claim they have a leveling or grading blade, the reality is they don’t. Simply smoothing out hoof prints will never bring an arena back to grade. A tool must have the ability to move dirt from one part of the arena to another to claim it can level an arena. Many drags can smooth, few can actually level. Unlike the competition, the TR3 E Series has a ground-engaging blade capable of moving a significant amount of material if needed. Not only that, it has an industry exclusive patent that enables the TR3 E Series leveling blade to “float”, when desired, to auto level the arena. In the floating position this blade will catch high areas and drop that material into lower areas automatically. If the arena is already level it will not dig holes or create high spots. This means, in an undamaged arena, no skill is required to achieve or maintain a level grade. But the floating position isn’t the only position! The drag bar may also be locked down to act like a box blade for rough grading and spreading material. This enables the TR3 E Series to not only maintain an already level arena in great condition, but also renovate an arena filled with waves and inconsistent footing. The TR3 E Series is the only 3-point tractor tool in the world that can do all this in one tool.

Grooming Rods

Break up slight compaction

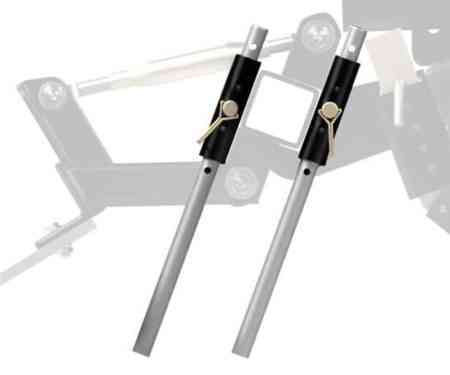

Many arena drags on the market today incorporate grooming rods into their design. The problem is, is that they count on these grooming rods as their primary loosening tool. Not with the TR3 E Series! Our grooming rods serve several very important functions.

1. The first is to give a second loosening action after the drag bar. Anytime you pull a blade with material on it, the footing will tighten up some. So, our grooming rods are positioned behind the blade to break up the slight compaction from the blade. The primary loosening of the arena footing comes from the profile blades or ripping teeth and not our grooming rods.
2. The second function is to add a little “texture” when wanted right about the base of the arena. In many disciplines, the horse needs a little “grip” right above the base for traction. This helps with barrel racing and jumping specifically. You simply lower the grooming rods below the profile blade and you get the best of both worlds! With the profile blades you get a consistent footing with no compaction clear down to the base and with the grooming rods you get the “grip” desired for some traction.
3. The last purpose of these grooming rods is to relieve any final compaction from the stabilizing wheels.

These grooming rods are adjustable and can wear 6″ before needing replaced!

Ripping Teeth

Easily penetrate compacted arena footing

The ripping or scarifying teeth loosen the ground to eliminate hard spots and easily penetrate compacted arena footing. The depths of these teeth are controlled by the stabilizing wheels to protect the base of the arena. Many equine disciplines require different footing depths and every footing material is different. The TR3 E Series ripping teeth are adjustable from 0″ – 7″ to enable the perfect amount of aggressiveness and loosening depth. The TR3 E Series is not only limited to the horse arena. If fact, because the teeth are “fixed”, not spring loaded, they make breaking up hardpan soil or gravel a breeze. Many customers use the TR3 E Series on gravel driveways and for light property maintenance.

Because the ripping or scarifying teeth can handle nearly any ground condition from horse arenas to gravel driveways the TR3 E Series teeth have replaceable bolt on tips. This feature not only ensures affordable and easy maintenance, of this wear part, but it also ensures peak ground penetration no matter the ground condition. If the tips wear to the point that performance is diminished, simply replace them and restore the performance to like new! Many competitive drags require the owner to grind off the worn parts and weld on new ones.

Adjustable Finish Rake

Groom material with the perfect amount of flow

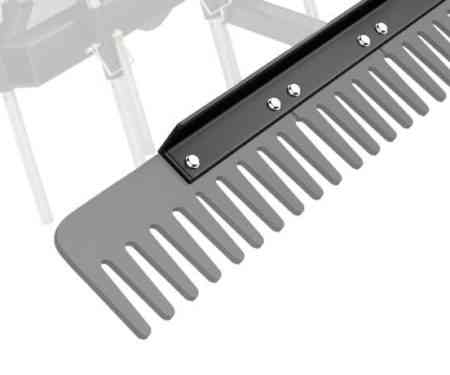

The final component of the TR3 E Series is the adjustable finish rake. This rear rake pulverizes and breaks up clumps of material and leaves a beautiful signature finish behind in the arena. By adjusting the rear manual jack, the TR3 E Series’ 1/2″ thick hardened-steel-rake, can pivot into into a variety of finishing and grading positions. This adjustability enables the rake to pulverize clods of material, level and finish no matter the material consistency. This functionality enables the TR3 E Series to beautifully groom material with the perfect amount of flow. Outside of the arena it can work on grading and resealing gravel driveways and even break-up manure lying on the pasture. The rake is replaceable in one-foot sections to reduce maintenance costs.

Rail Blade

Eliminate hours of back breaking work

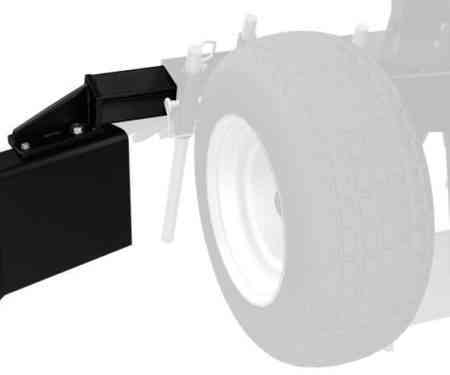

The optional TR3 E-Series rail blade eliminates footing material buildup along the rail of a horse arena. This option saves hours of labor by eliminating the need to manually rake out, tractor accessible, arena edges. The breakaway shear bolt, edge wheel, and edge marker stake pocket all contribute to assist the operator with damage free operation near wood fences, walls, and rails. (Driveway Marker Stake not included, available at local hardware)
